SKYLIGHT DOMES
Our domes are made from acrylic and polycarbonate panels 2-4
mm thick, bent into shape by
thermoforming. The individual layers are assembled into a compact whole. Each dome is fitted
with a seal which is in contact with the upstand. The dome is designed to allow water to drain
off it, and prevents water flowing into roof cladding and indoors. The main advantage of domed
windows is the high amount of light they let in; 92% for clear and 81% for opal
domes.
The domes ensure the ideal lighting for an interior space.
ACRYLIC DOMES
High light transmittance, clear or opal options available
Domes made from acrylic glass are UV stable with a long lifespan. PMMA is 25 times more durable than glass. As standard, the domes are available in clear or opal (milky) tint options. Custom color options are available upon request.
Technical drawings Declaration of Performance Price list
POLYCARBONATE DOMES
Mechanically resistant to hail and breakage
Domes made from polycarbonate have excellent mechanical durability, as polycarbonate is 300 times more durable than glass. As standard, the domes are available in clear or opal tint options.
Technical drawings Declaration of Performance Price list
SOLAR CONTROL DOME
Mechanically resistant and reflects solar radiation
These domes combine the benefits of polycarbonate and Heatstop. They are resistant to both breakage and up to 65% of solar radiation, preventing overheating under the skylight. The solar control dome is available in a smoky gray color.
Technical drawings Declaration of Performance Spec sheet Price list

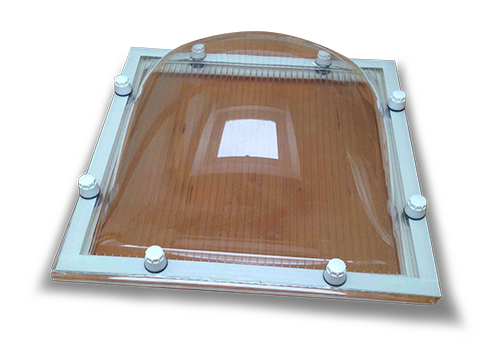

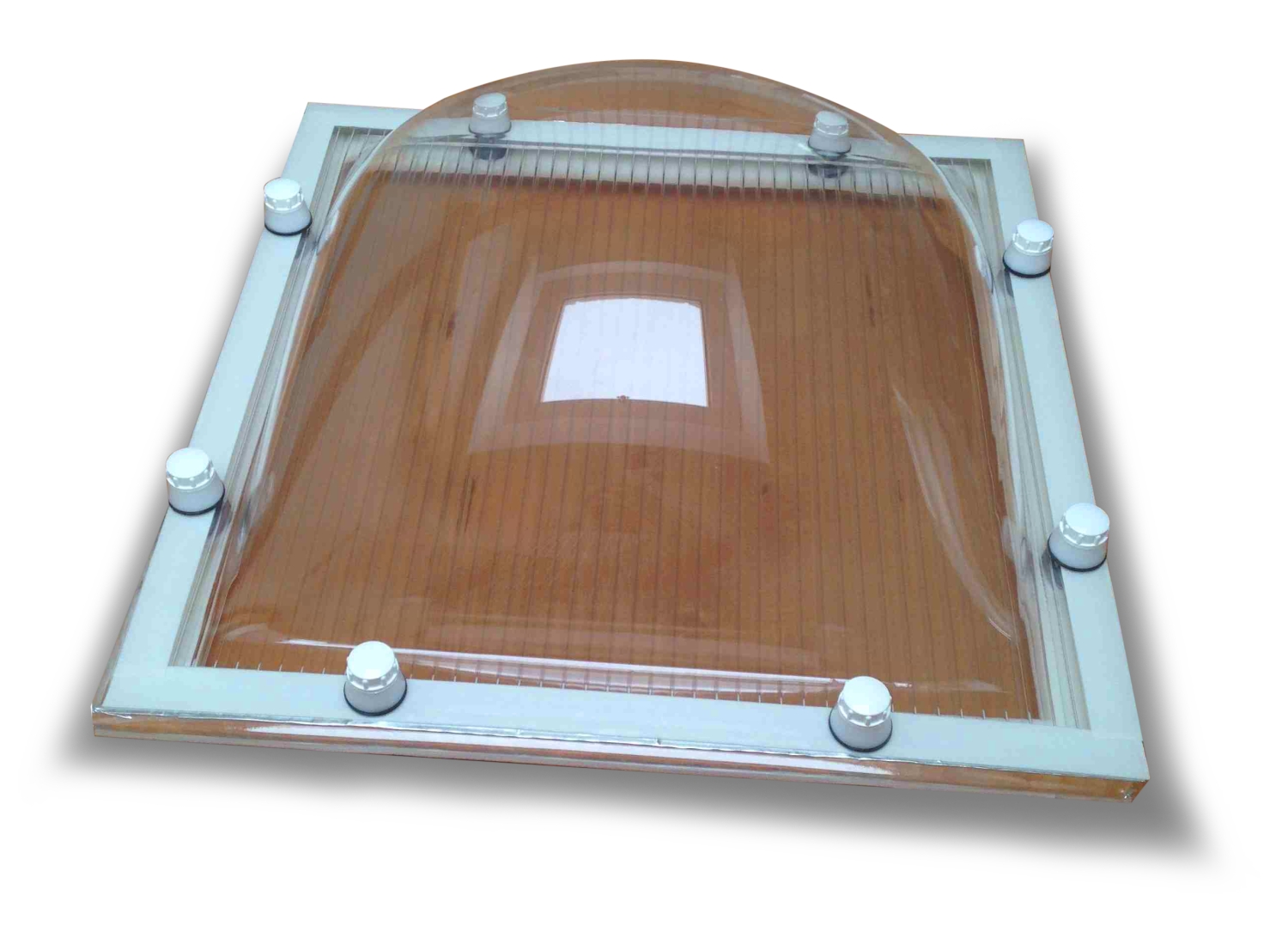

CHAMBERED POLYCARBONATE DOMES
Outstanding thermal insulation properties
The skylight wing is made of hardened PVC material, which is glazed with 25 or 32 mm thick polycarbonate. The glazing dome can be made of acrylic glass or polycarbonate material. The domes meet excellent thermal insulation properties, combined with an economical solution. The low weight of the domes is also an advantage.
Technical drawings Declaration of Performance Prices on request
Opaque glazing
Excellent thermally insulated opaque lid
The laminate hatch is designed primarily for roof outlets, where interior lighting is not required. The installation of these hatches is mainly for prefabricated and apartment buildings. The advantage is high resistance to weathering. The laminate hatch is of sandwich design, and excellently thermally insulated with 40 or 60 mm thick PUR foam. The lid is white RAL 9010, however, it is possible to produce it in other colours on request.
Drawing Declaration of performance Price list
